LPG/Air Venturi Mixers
When LPG and air are mixed in the proper proportions, the resulting mixture
burns with the same heating characteristics as natural gas. This LPG/Air mixture
will burn through the same burner train and with the same efficiency as natural
gas. Thus, LPG/Air mixtures can be used to replace or supplement natural gas,
without orifice changes. Industrial users can take advantage of interruptible
natural gas rates from the local utility company by relying on an economical
standby mixing system from Algas-SDI. All Algas-SDI venturi mixers have 100%
turn down capability.

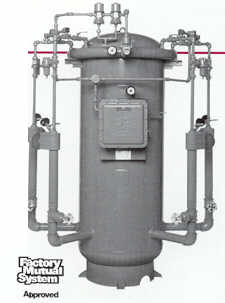

Vaporaire LPG/Air Mixer
V7 TO V250 (7 - 250 MILLION BTU/HR)
- The perfect solution for continuous use or as a stand-by system.
- Connects directly to existing natural gas distribution lines.
- No compressors to maintain, no orifices to change.
- Solid state progressive sequencer performs pre-pro- grammed logic
ON/OFF switching functions to accurately match each venturi to any flow
demand.
- Low vapor pressure safety switch prevents rich mixtures from
developing due to inadequate motive pressure.
- Two or more units can easily be operating in parallel to meet the
growing requirements of your business.
- Delivery pressures available up to 15 PSIG for propane; 8 PSIG for
100% butane.
- Few moving parts for minimum maintenance operation.
|
 |
 |
M-Series LPG/Air Mixer
M21 TO M250 (21 - 250 MILLION BTU/HR)
- Adaptable to all brands and designs of LPG vaporizers.
- During periods of no mixed gas consumption, the mixer may be left in
the energized mode without recondensation of the mix occurring.
- Same performance and delivery pressures as VAPORAIRE
M-Series M28PA to M250PA LPG/Air Mixer
(28 - 250 MILLION BTU/HR)
- Assisted by pressurized air.
- Delivery pressure up to 40 PSIG for propane.
- 30 PSIG for butane/propane mixtures.
|
