• Durable fixed-air forced draft burner ensures smooth and consistent heating.
• Electronic flame safeguard guarantees positive and safe burner ignition.
• water circulation pump eliminates thermal stratification and increases heat transfer.
• First Out Annunciator Displays:
  - Flame failure
  - High liquid LPG level
  - Low water level
  - High water temperature
  - High gas pressure
  - Power On/Reset
  - Spare contacts for connection to mixing system(2)
  - Large-scale capacity - economical operating costs
• Optional Minnesota or IRI burner configuration

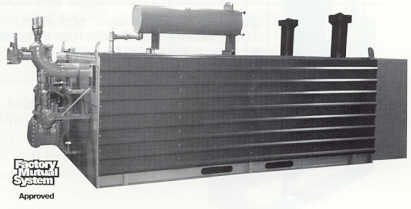

• Utility grade vaporizer designed for most severe conditions and duty.
• Multi-header, multi-pass heat exchanger assures optimum velocity for complete vaporization and provides superheat to the vapor at rated capacity.
• High quality forced draft burner provides fast response to load changes.
• Galvanized thermal expansion tank with water level sight gauge assures heat exchanger protection. Removable burner enclosure for maintenance access.
