Diversified Vaporizer Line

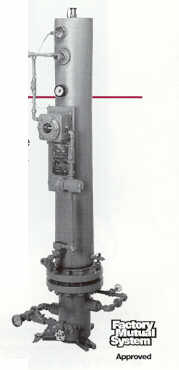

Azeovaire Steam Heated
A160S to A4400S (160 to 4400 GPH)
Liquid LPG enters the vaporizer shell and comes in contact
with the tube bundle; boiling of the LPG results. Heat is transferred
from the steam to the liquid LPG, which then vaporizes. The steam
condenses as heat is removed and accumulates in the condensate chamber in
the base of the vaporizer. A steam trap drains condensate
automatically without wasting steam.
- Class I, Div. 1, Group D
- Heat exchanger fabricated in accordance with ASME pressure vessel
code, Section VIII, Div. 1
- Fully insulated.
|
 |

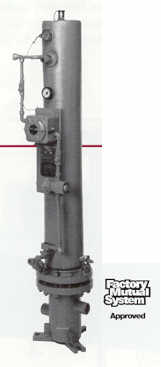

Azeovaire Circulating Hot Water
A160W to A4400W (160 to 4400 GPH)
 |
Hot water from an external hot water source provides the
thermal energy necessary for LPG vaporization. Liquid LPG enters the
vaporizer shell and comes in contact with the tube bundle. Heat is
transferred from the water to the liquid LPG, which then vaporizes.
- Class I, Div. 1, Group D
- Heat exchanger fabricated in accordance with ASME pressure vessel
code, Section VIII, Div. 1
- Fully insulated.
|
