OXYGEN FURNACES (Continued)

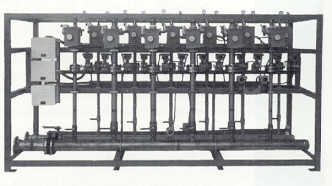

METERING AND FLOW CONTROL PANEL
for Oxygen/Natural Gas/Oil

- Provides for the automatic metering and flow control
  of oxygen, natural gas, and/or oil to the Primefire
  burner
- Includes flow control valve with actuator, orifice plate
  or mass flow meters, necessary shutoff valves, and
  bypass sections
- Shop assembled, pre-wired, and tested

TRANSMITTER PANEL

- Two metering panels allow the reading of individual
  burner flows
- Panels can be located away from the furnace
- Gauges have the appropriate valves, which allows
  reading the differential pressure (flow) across a
  number of individual gas/oxygen orifice plates


REGENERATIVE FURNACES
Complete Combustion System Design & Supply

ADJUSTABLE ORIFICE BURNER
Adjustable Flame Shape Oil Only

- Regenerative furnace application
- Underport, overport, and sideport burner firing
- Adjustable flame length and shape control
- Efficient mechanical and air-assist atomization to
  40 psig (2.76 bars)
- "Sealed-in" firing principle for greater fuel efficiency
