REFINERS/DISTRIBUTORS
Complete Combustion System Design and Supply
NOZZLE MIX BURNER
Hot/Cold Air - Combination Fuel Oil & Gas
- Long life stainless steel construction
- Standard models to 1400°F (760°C), special
models to 1800°F (982°C)
- Improved adjustable gas orifice for better flame
shape control
- Oil uses atomizing air or steam to 40 psig(2.76 bars)
- Gas to 5 psig (0.4 bar)
- Variable oil flame shaping capability |
|
DISC FLAME BURNER
Hot Air - Nozzle Mix
- Gas fired with disc shaped flame; has negligible
forward flame velocity
- Long life, stainless steel construction for preheated
combustion air; carbon steel used for ambient
systems
- Ambient models at 60°F (15°C); preheated models
to 1400°F (760°C), and special models to
1800°F (982°C)
- Provides uniform heating characteristics with no
flame impingement |
|

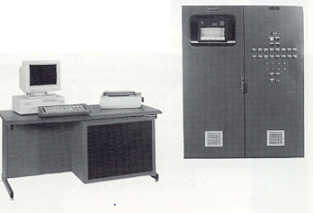

INSTRUMENTATION
- Automatic Control by Burner
- Single Zone Control
- Fuel Flow Control (Natural Gas or Oil)
- Oxygen (or Combustion Air) Flow Control
- Furnace Temperature
- Furnace Pressure
- Glass Level |
|
