ROOTS METER SETS & ACCESSORIES

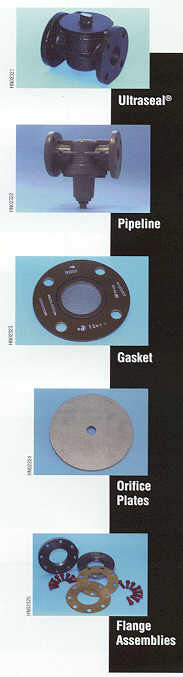

ROOTS Ultraseal Gas Meter Valves

Ultraseal valves are permanently lubricated and bi-directional. They meet NPFA standards and continue to maintain a bubble-tight seal after Qualification testing to over 10,000 cycles. Torque values remain low even at subzero temperatures. Locking plates are also available.

ROOTS Pipeline Strainers

These strainers are designed to protect meters and other precision devices from the damaging effects of entrained system debris. A low pressure drop is achieved through a large element area and venturi port design. The debris bowl is tapped for cleaning.

ROOTS Gasket Strainers

Using a 20 mesh stainless steel screen, the Gasket Strainer helps protect against potential damage to precision pipeline measurement and regulation equipment caused by occasional introduction of weld slag, plastic pipe shavings, or other debris.

Restricting Orifice Plates

Sized orifice plates provide low cost protection against meter overspeed. The plates are designed to choke gas flow at 100% for meters rated over 300 PSIG. Plates are installed 2 to 4 pipe diameters downstream for maximum effectiveness.

Companion Flange Assemblies

These include all the equipment necessary for mounting a meter in a pipeline. The kit consists of flanges, coated flange bolts, and gaskets.
