ROOTS SERIES B3 LINE MOUNT METERS
with Life-Lubed Accessory Unit

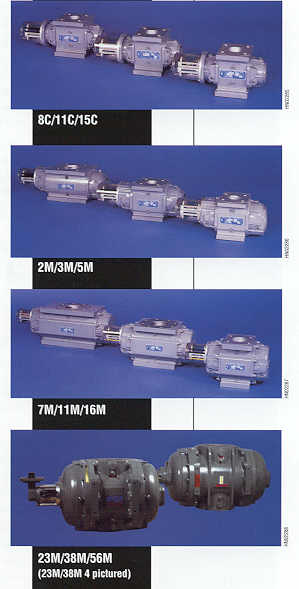

A full range of meters are available in capacity ratings from 800 CFH to 56,000 CFH (22,6 m3/h to 1 ,600 m3/h) with a maximum operating pressure rating of 175 PSIG (12 Bar). Models 8C through 2M are available with a 200 PSIG (13,8 Bar) rating upon request. The five smallest meter sizes (8C through 3M) have 2" (50 mm) flanged connections, and a 6-3/4" (171 mm) flange-to-flange dimension. If application requirements change, this unique feature allows a quick and easy meter exchange without the need to re-pipe the meter set. All Series B meters utilize the versatile Series 3 Accessories. For operating requirements beyond those listed, please contact your ROOTS Meters & Instruments representative.
