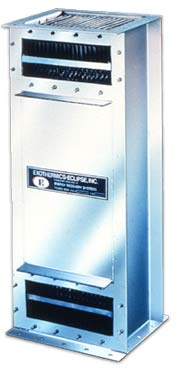

Exothermics Mini Stainless Steel Heat Exchanger

The Exothermics Mini SS Heat Exchanger is the answer to heat recovery needs in systems with low air volumes. Designed specifically for systems with SCFM volumes of 100 to 500 and temperatures up to 1200F, the Mini Heat Exchanger provides optimum heat recovery. The removable access cover on the exhaust airstream makes it possible to clean the unit and maintain peak effectiveness.

The Exothermics Mini Stainless Steel Heat Exchanger is a fully welded assembly that provides structural and airstream integrity. This is accomplished with features such as a continuously welded primary seal that separates the two airstreams and fully welded end seals. Constructed of stainless steel alloy, the Mini Heat Exchanger provides efficient heat recovery on applications including thermal and catalytic oxidizers, boilers, dryers, ovens, furnaces and kilns.



FeatureGIF

Max Operating Temp
1200 F. (650 C)

Volume Range

100-500 CFM (170-850 m3/hr)




  • All welded construction
  • All stainless steel construction
  • Temperatures up to 1200F
  • Compact counterflow design
  • Removable exhaust access cover
  • 2-1/2" formed stainless steel flanges
  • W-I-D-E (3/8") plate spacing

Typical Applications

  • Thermal incinerators
  • Combustion preheat
  • Furnaces

To download more information, click on the link below:

Exothermics - Mini SS Heat Exchanger
